CAST IRON – GRAY AND DUCTILE

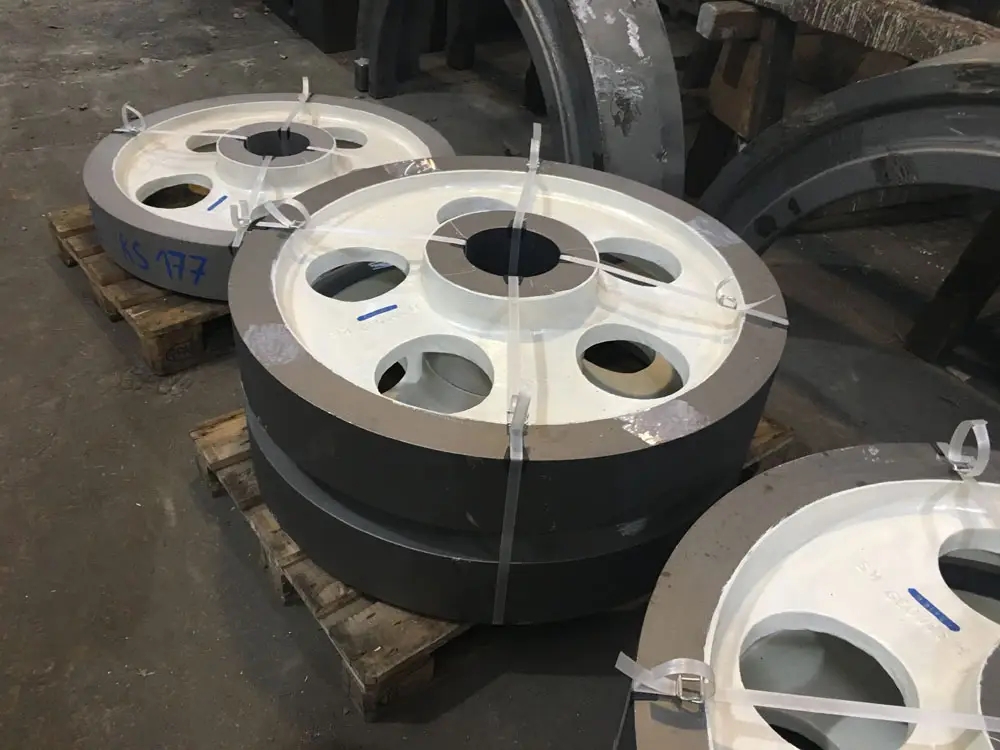

Cast iron castings are a core part of PSP Italia’s production. For over 35 years, we have been manufacturing components in gray iron (EN-GJL) and ductile iron (EN-GJS), designed to deliver high mechanical performance, durability and reliability across a wide range of industrial applications.

All castings can be supplied as-cast or machined, with optional heat treatments (normalizing, annealing, quenching and tempering) and non-destructive testing (NDT) such as ultrasonic (UT), magnetic particle (MT) and dye penetrant (PT) inspections, along with chemical analysis and mechanical testing.
All materials are supplied with EN 10204 3.1 certificates and full batch traceability.

Gray iron (EN-GJL)

Gray iron is valued for its excellent compressive strength and dimensional stability, as well as its vibration damping capacity. These properties make it ideal for components requiring structural stability and precision, such as machine bases and load-bearing parts.
It also offers excellent machinability and a strong performance-to-cost ratio.
Common grades: EN-GJL-150, EN-GJL-200, EN-GJL-250, EN-GJL-300.

Ductile iron (EN-GJS)

Ductile iron combines high resilience and ductility with strong mechanical strength, making it ideal for components subjected to dynamic or cyclic loading.
It provides an excellent strength-to-weight ratio and high fatigue resistance, ensuring reliable performance even in demanding conditions.
Common grades: EN-GJS-400-15, EN-GJS-500-7, EN-GJS-600-3, EN-GJS-700-2.

Technical specifications

• Casting weight: from a few kg up to approx. 80,000 kg
• Maximum dimensions: up to approx. 8,500 mm per side
• Dimensional tolerances: according to ISO 8062-3
• Material certification: EN 10204 3.1
• Quality inspections: UT, MT, PT, spectrometry, mechanical tests

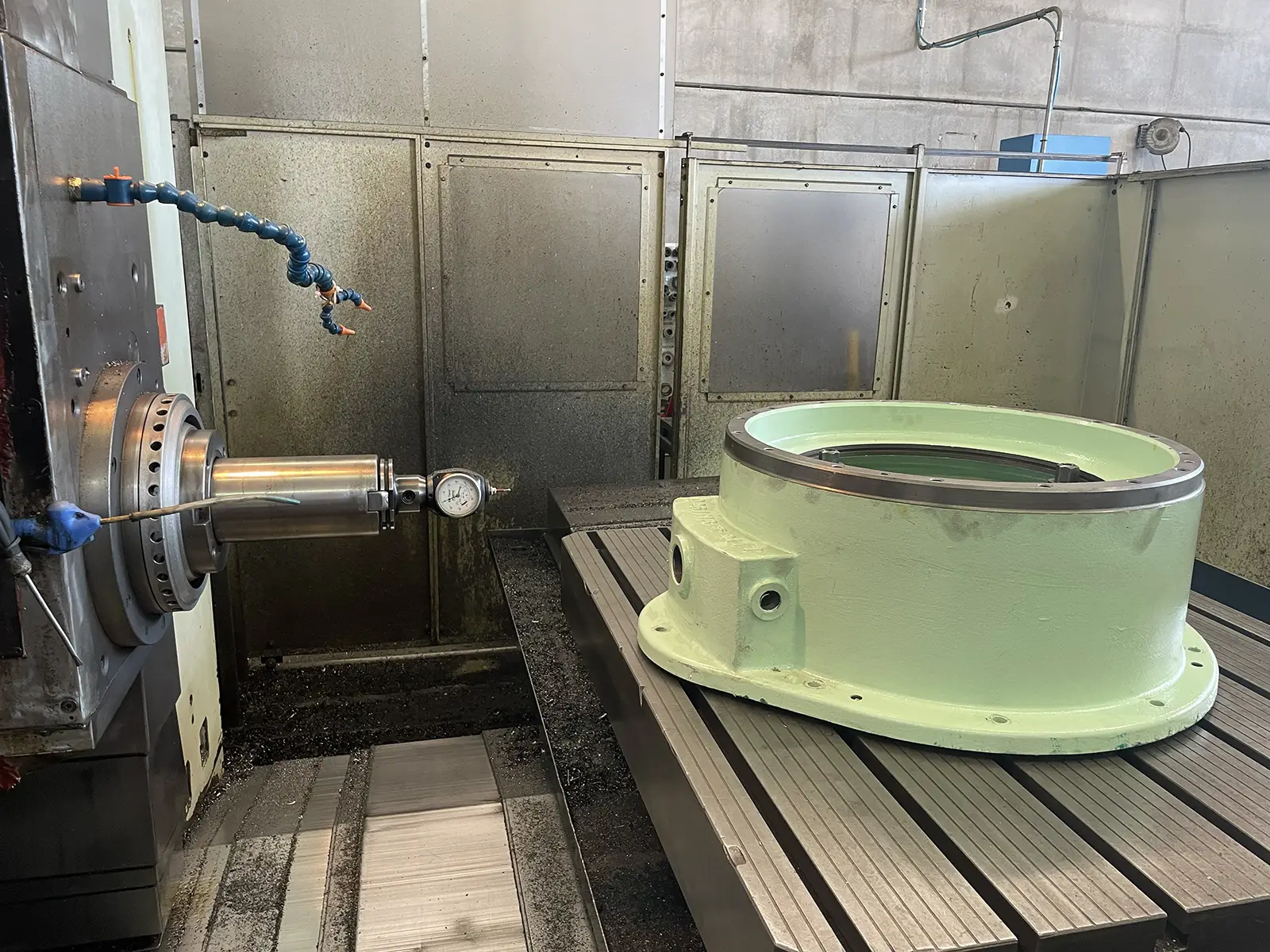

• Additional options: heat treatments, CNC machining, painting, marking, full technical documentation

Main applications

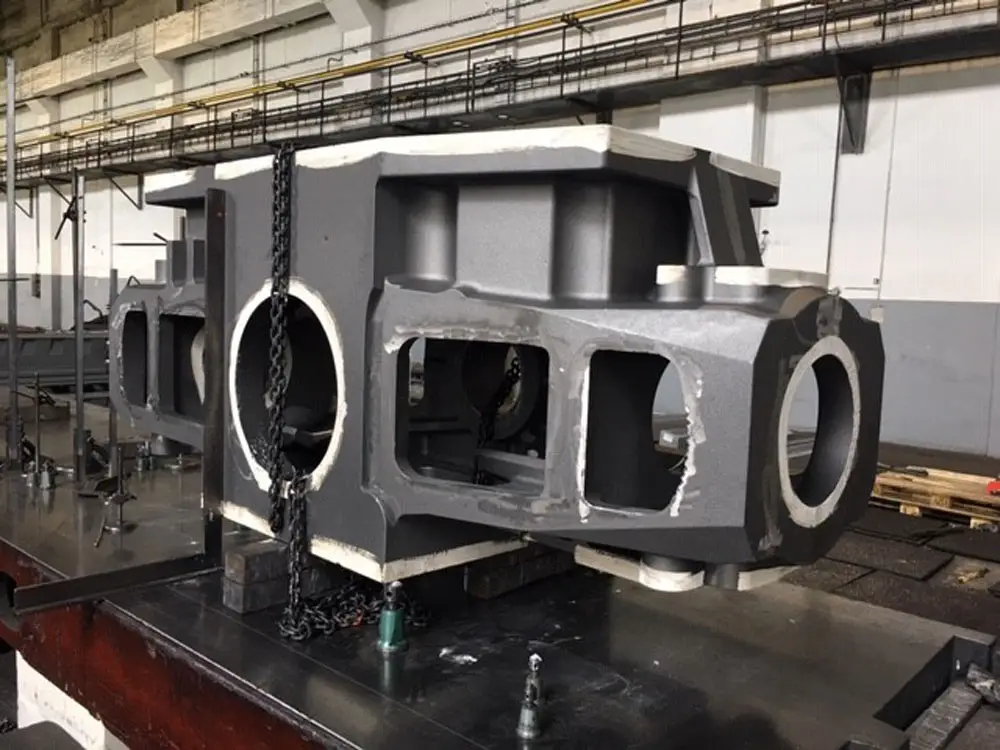

• Machine bases and frames
• Pump and valve bodies

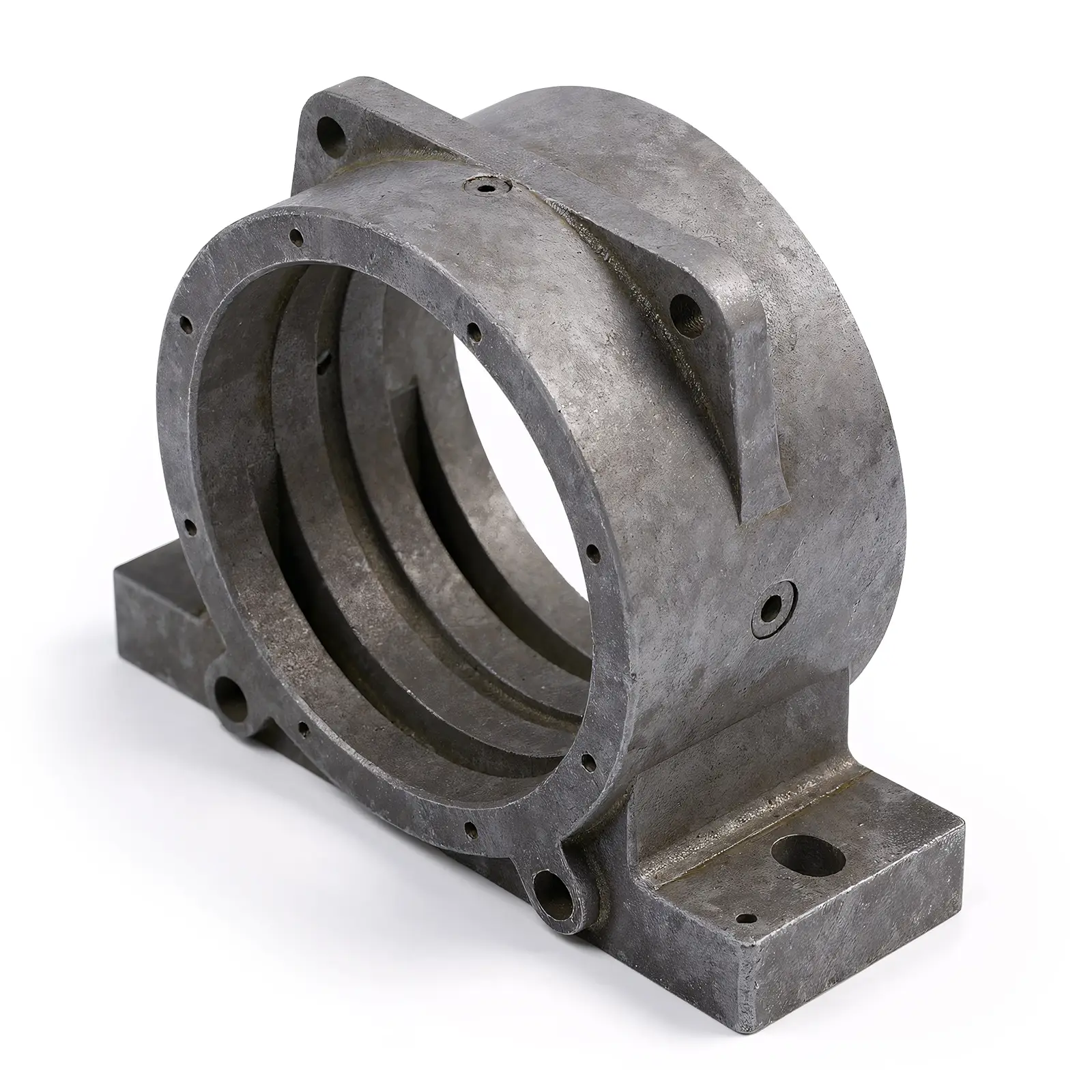

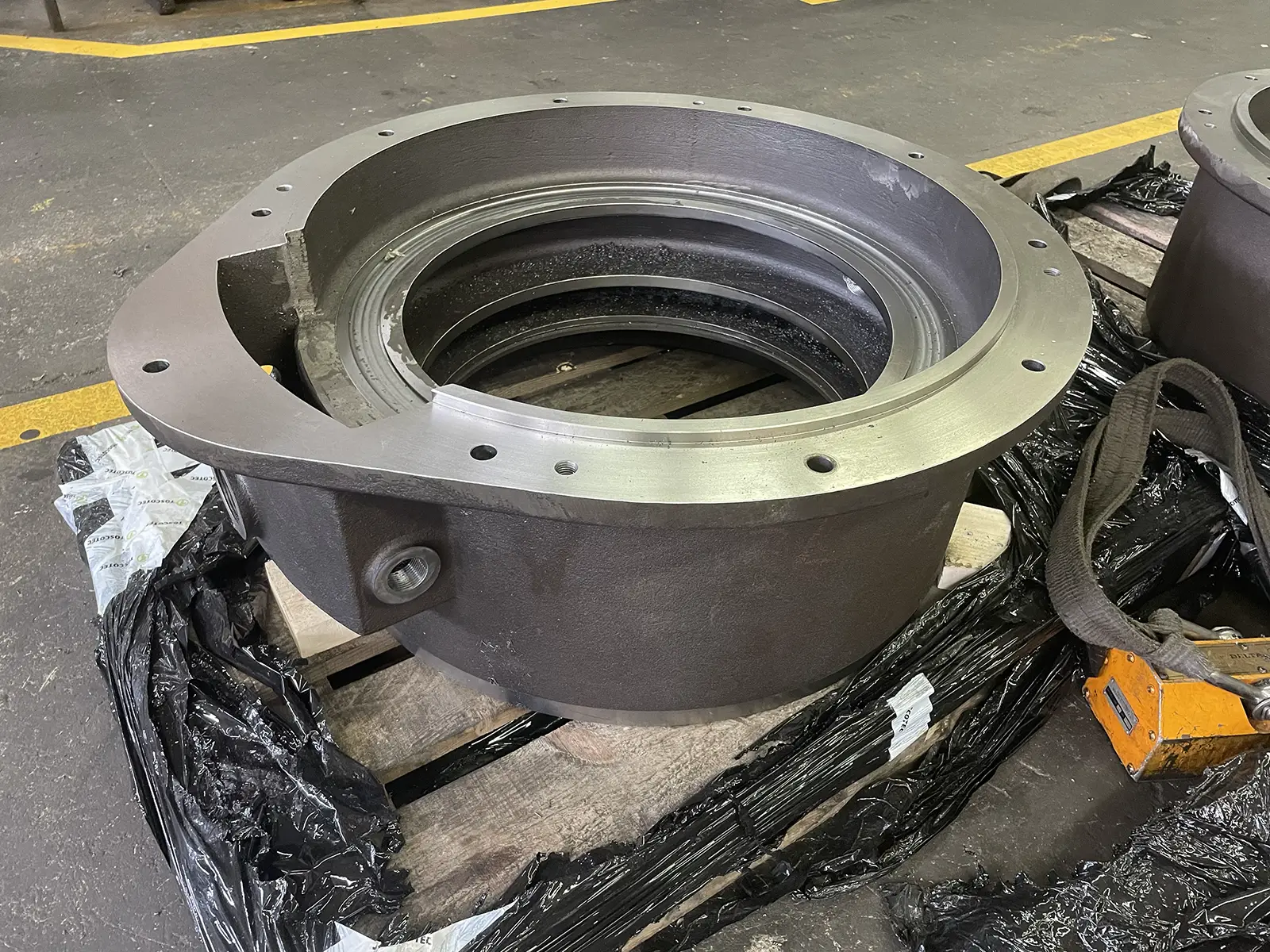

• Housings and covers
• Earthmoving equipment components
• Structural parts for industrial machinery

PSP Italia provides technical support during the design phase to optimize casting geometry (radii, draft angles, gating and feeding systems) and ensure the best balance between quality, performance and cost.
